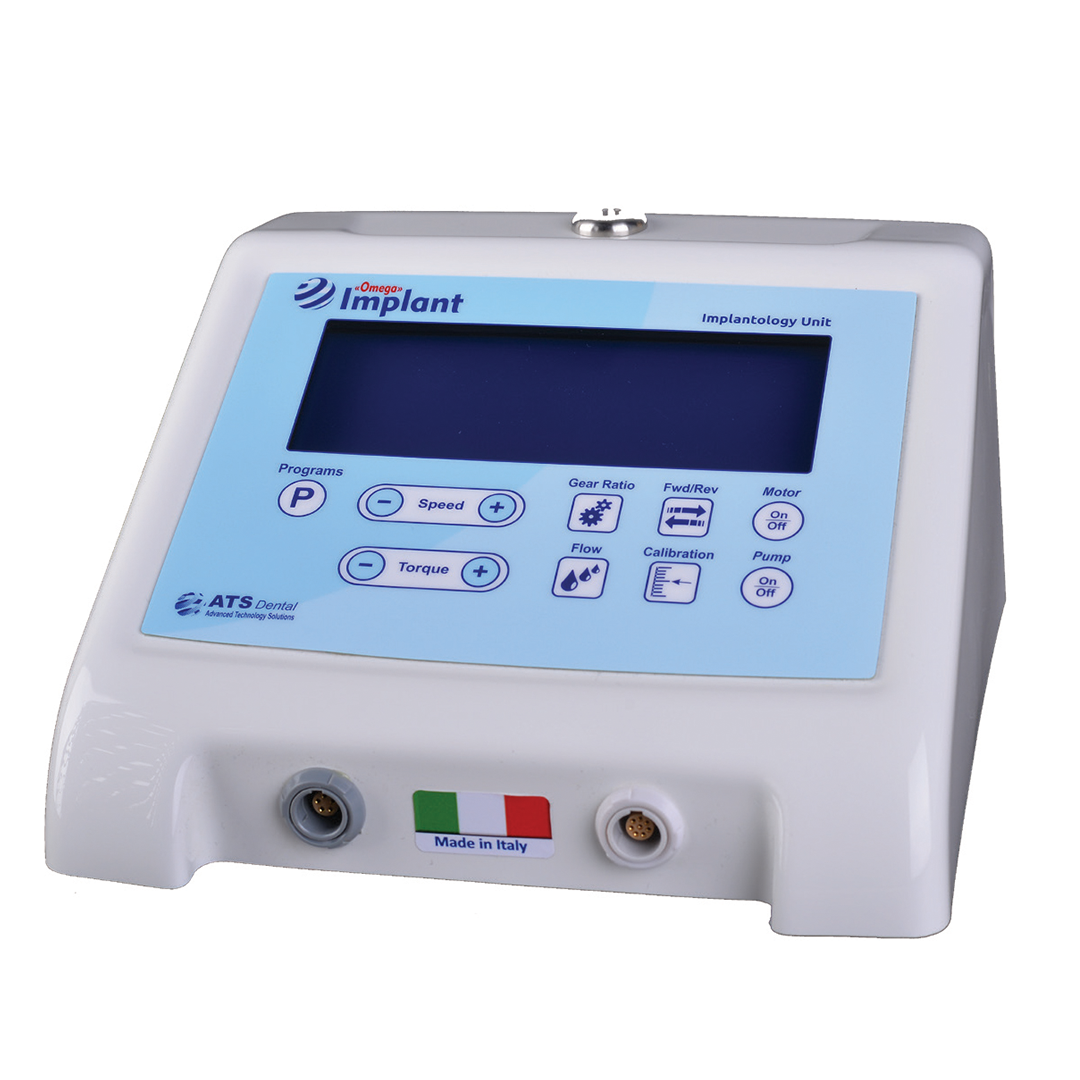

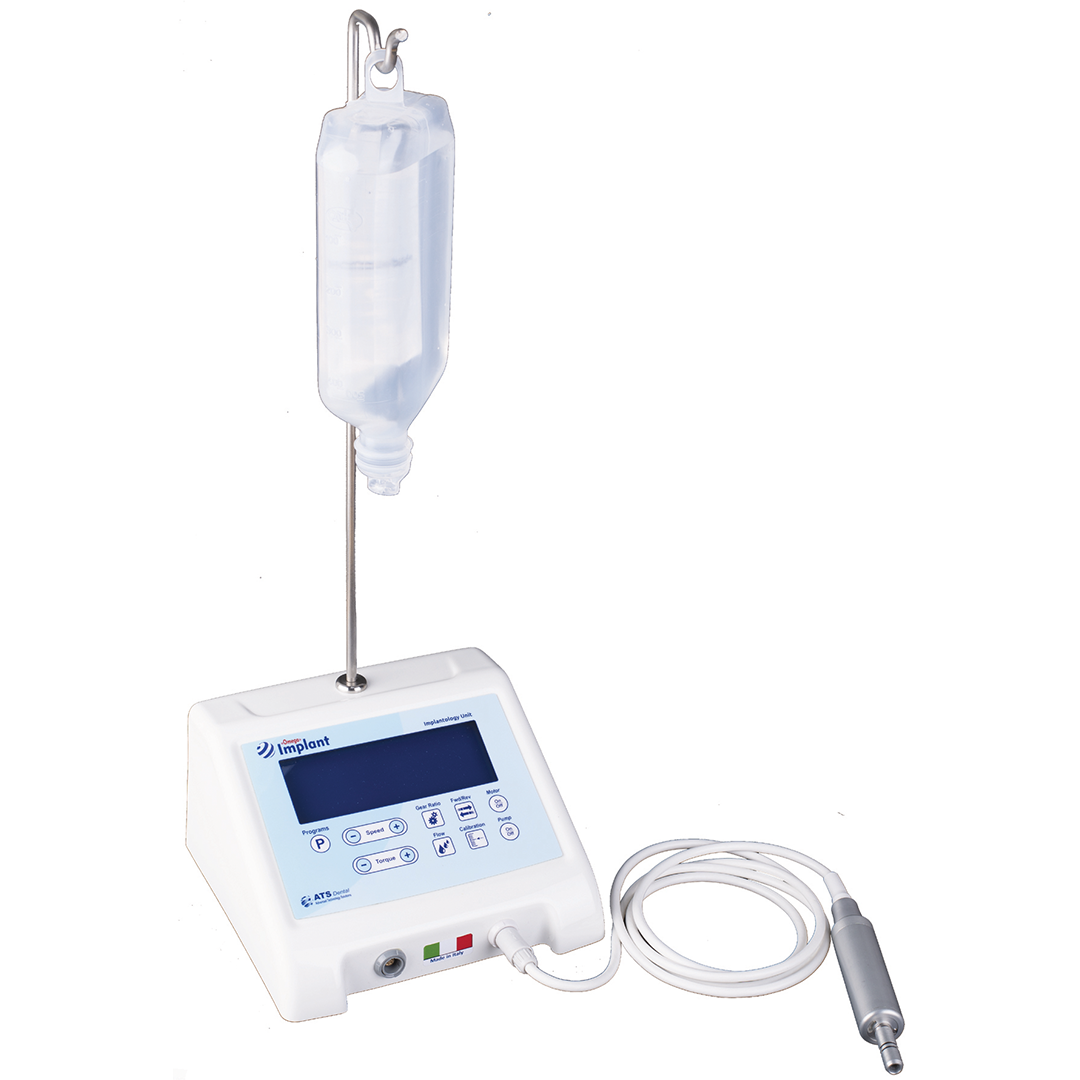

Omega ATS Implant Motor


In Stock

SKU: 35080 Categories: , Tag:

Omega ATS Implant Motor


Brushless micromotor

Electronic calibration of contra-angle

Available with 3 different pedal

Built to last



Torque 51 ncm

Implant motor with integrated coolant pump easy and uncomplicated to use brushless motor

Is a complete system specially developed under consideration of all the needs in implantology and surgery

Used with contra 20:1

Speed from 400-30000 RPM

Gear ratio contra-angle ratio: 1:1 / 16:1 / 20:1 / 24:1 / 32:1 / 64:1 / 80:1

Calibration: compensate the loss torque caused by contra-angle

3 different flow rate (min-med-max) max=100ml/min


Solution holder

Motor holder


Made in Italy
